Product Description

VIDEO

Carbon Steel plate application range

Widely used in crushers, shale shakers, feed hoppers, skips, loaders, excavators, bulldozer buckets and knife plates, scraper conveyors, dump trucks, trams, pavers, asphalt mixing stations, knives, gears, mud pipeline systems, cement plant equipment, screw conveyors and other wear resistant structural parts.

Product Name	Carbon Steel Sheet/Plate
Thickness	0.1mm-400mm
Width	12.7mm-3050mm
Length	5800，6000 or customized
Surface	Black skin, Pickling, Oiling,galvanized，tinning，etc
Material	S235JR,S275JR,S355JR,A36,SS400,Q235,Q355,ST37, ST52,SPCC,SPHC,SPHT,DC01,DC03,etc
Standard	GB,GOST,ASTM,AISI,JIS,BS,DIN,EN
Technology	Hot rolling, Cold rolling, Pickling,galvanized，tinning
MOQ	25tons

Chemical Composition

Type of Carbon Steel	Carbon Composition
Low Carbon/Mild	0.05-0.25%
Medium Carbon	0.26-0.60%
High Carbon	0.61-1.50%

Grade	Carbon Max	Manganese	Phosphorus Max	Sulfur Max	Silicon
A36 up to 3/4” thick	0.25%	N/A	0.030%	0.030%	0.40% Max
A36 >3/4 – 1 ½” thick	0.25%	0.80-1.20%	0.030%	0.030%	0.40% Max
A36 > 1 ½ - 2 ½” thick	0.26%	0.80-1.20%	0.030%	0.030%	0.15-0.40%
A36 >2 ½ - 4” thick	0.27%	0.85-1.20%	0.030%	0.030%	0.15-0.40%
A36 >4” thick	0.29%	0.85-1.20%	0.030%	0.030%	0.15-0.40%
A572 Grade 42	0.21%	1.35%	0.030%	0.030%	0.15-0.40%
A572 Grade 50	0.23%	1.35%	0.030%	0.030%	0.15-0.40%
A830 Grade 1020	0.18-0.23%	0.30-0.60%	0.030%	0.030%	N/A

Mechanical Properties

Grade	Yield Strength (ksi)	Tensile Strength (ksi)	Applications
A36	36	58–80	Construction, bridges
A572 Grade 50	50	65	High-strength structural
A516 Grade 70	38	70	Pressure vessels, boilers
AH36	51	71–90	Shipbuilding
1045	45	77	Machinery, automotive

Packing & Delivery

The Carbon steel sheet will be packed in seaworthy packing such as steel strips bundles. If you have any special requests on this, please let us know advanced. We will refer to your email kindly.

1).20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

2).40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

3).40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

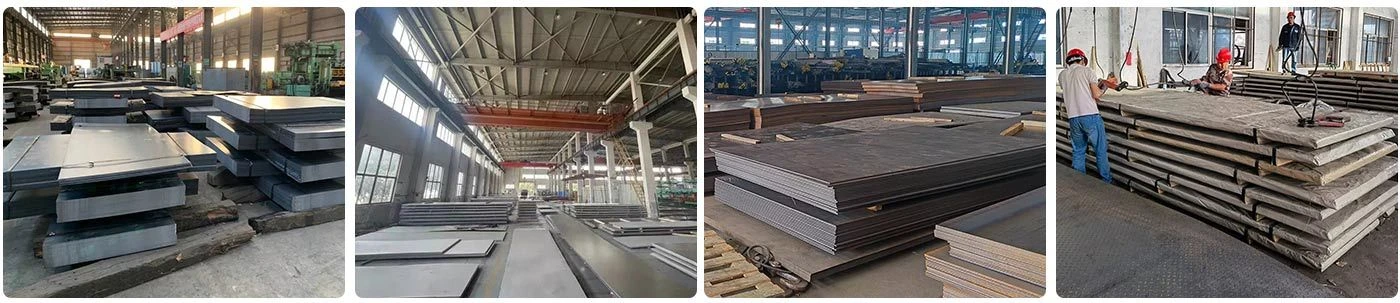

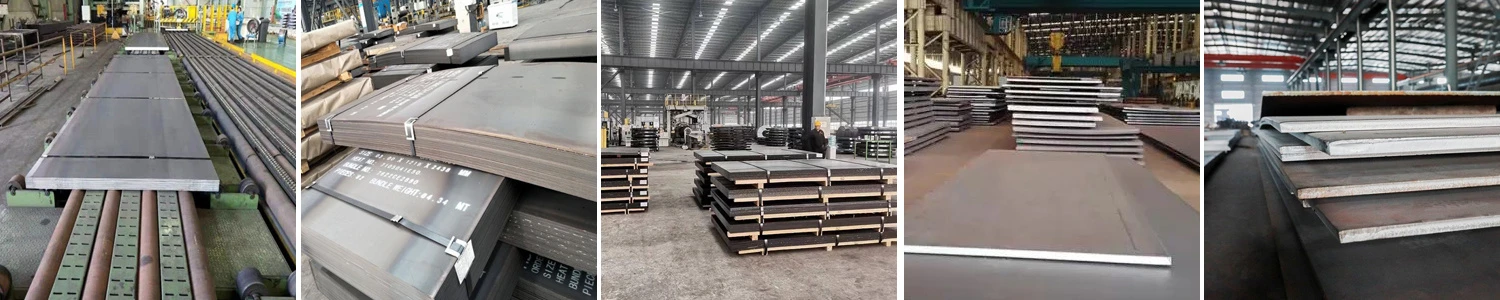

Warehouse Storage

Dongte (China) Metal Products Sales Co., Ltd. is a large enterprise integrating production and sales (international export). The factory covers an area of 30,000 square meters. Convenient sea, land and air transportation. We have complete testing equipment and strong technical force. The company has advanced production equipment, equipped with key equipment such as pressing machines, large heat treatment furnaces, beveling machines, sawing machines, large sandblasting machines, and various testing instruments.

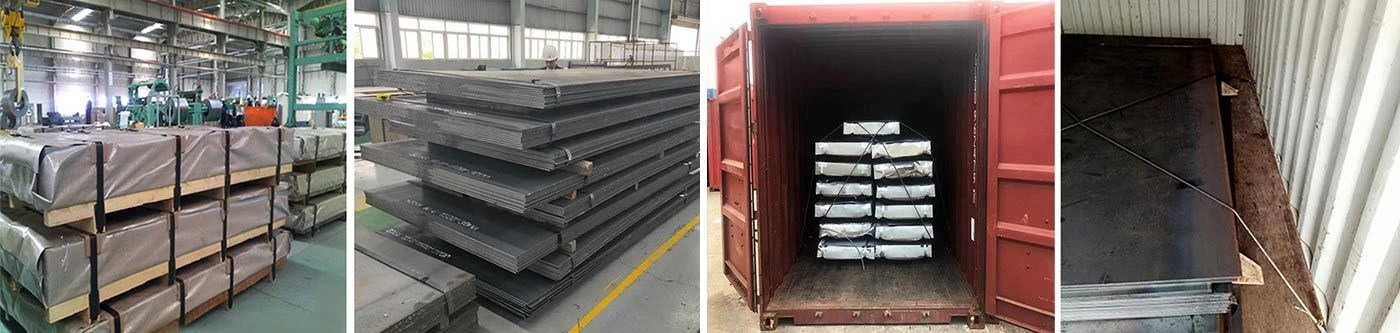

Packing and shipping

We have numerous customers around the world and our products are exported to multiple countries such as Asia, the Middle East, the Americas, Europe, Africa, etc. We enjoy a good reputation both domestically and internationally.
